INFOCOMM, ORLANDO, FLORIDA, June 17, 2015 — Genelec (booth 430), the leader in active monitoring technology for over 35 years, offers contractors and system integrators the most advanced active speaker solutions with its line of discreet, low profile models. Examples include the AIW25 Active In-Wall Loudspeaker, the AIC25 Active In-Ceiling Loudspeaker and the AIWS5041A Active In-Wall Subwoofer, which are part of Genelec’s range of architectural solutions. Each model is designed to meet the needs of the contractor/integrator and underscores Genelec’s ongoing commitment to the high-end installation market.
Both the AIW25 and the AIC25 feature perfectly matched, separate RAM2 remote amplifier modules. Each comes complete with a metal enclosure to maximize performance and ease of installation. Visible parts of these loudspeakers can be painted to suit the listening environment.
The AIW25 Active In-Wall Loudspeaker is a two-way active speaker with a 5" bass driver and 3/4" treble driver (metal dome) equipped with Genelec’s DCW. It also features a RAM2 remote amplifier module, which includes active crossover circuitry and separate, matched 40 Watt power amplifiers for the bass and treble drivers. The AIW25 has a frequency response of 70 Hz-18 kHz (+/-2.5 dB) and a maximum peak SPL of ≥100 dB. Its dimensions are 14 3/16" H x 10 1/2" W x 4 3/32" D. The AIW25 fits into a standard 2" x 4" wall structure and can easily be retrofitted to existing construction. This speaker is ideal in demanding applications, such as the main L-C-R array of a small home theater system, a basic stereo configuration or the surround channels of a high quality home theater.
The AIC25 Active In-Ceiling Loudspeaker is a two-way active loudspeaker with 5" bass driver and 3/4" treble driver (metal dome). It also features a RAM2 remote amplifier module, which includes active crossover circuitry and separate, matched 40 Watt power amplifiers for the bass and treble drivers. The AIC25 has a frequency response of 70 Hz-18 kHz (+/-2.5 dB) and a maximum peak SPL of ≥100 dB. Its dimensions are 11 3/16" W (diameter) x 6 3/16" D. The AIC25 delivers low distortion and high sound pressure handling capabilities in a discrete yet powerful package ideal for use in home theater installations.

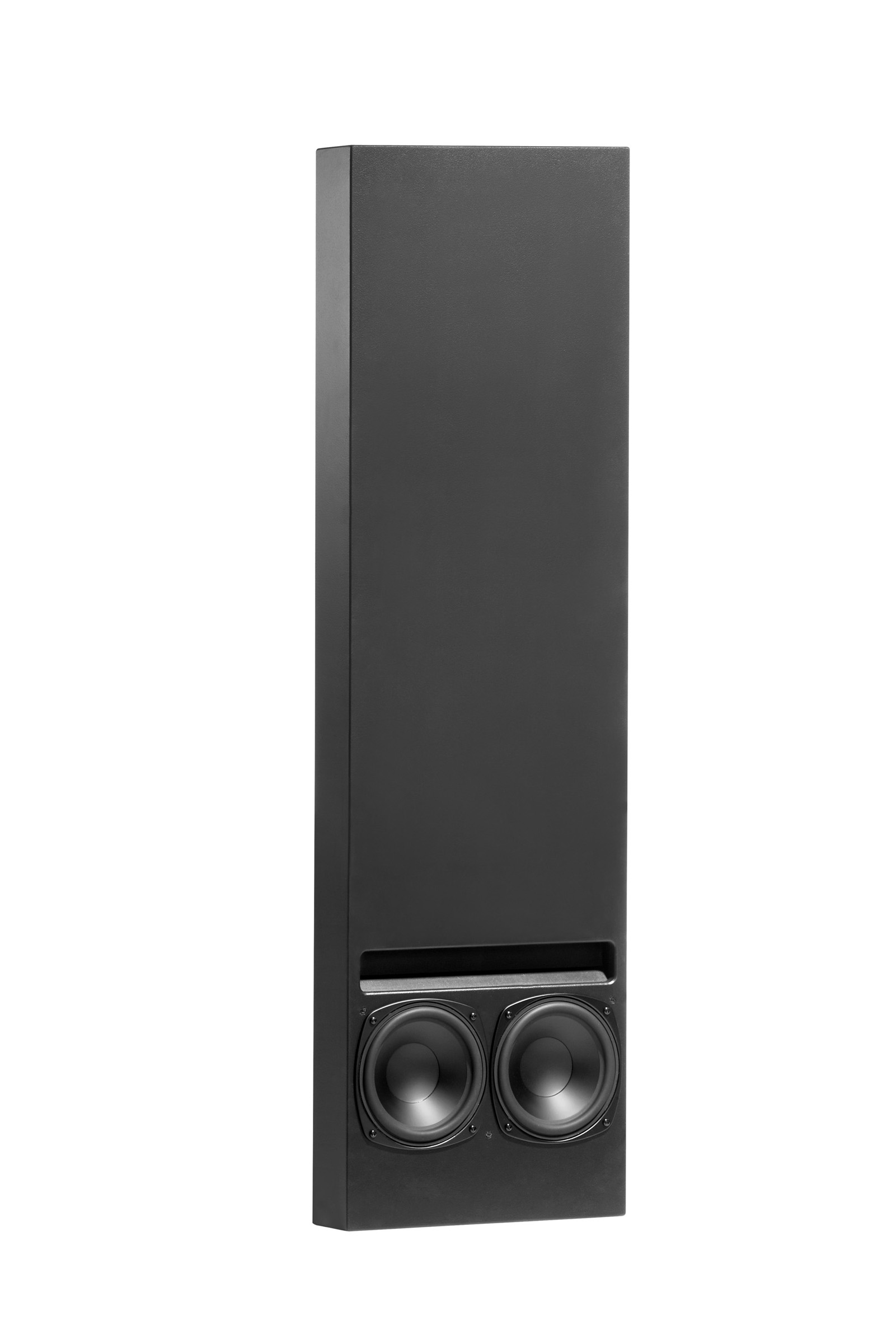

The AIWS5041A active in-wall subwoofer comes equipped with a pair of 6½" drivers and a tuned port, and it can be mounted in any standard 16" stud bay. Using four independent mounting brackets, the enclosure is completely isolated from the wall surfaces, eliminating any potential vibration from being transmitted to the walls. A protective cover shields the drivers from potential damage during the construction phase of a project. The system includes a rack-mountable RAM3 amplifier that supplies 125 Watts of power. |
