InfoComm, Las Vegas, Nevada, June 13, 2012 – When the 1,800-seat Interstake Auditorium at the LDS (Mormon) Temple in Oakland, California, required a new sound system, technologies from Bose® Professional Systems Division (Booth C10546 / Demo Room N113) offered the perfect solutions. The worship facility had presented significant challenges to sound system designers ever since it first opened in 1964, including strong, focused echoes, somewhat heightened ambient noise levels, and a ceiling built too low for that type of room. These difficulties needed to be addressed once and for all, and as cost-effectively and efficiently as possible. The answers were found in the Bose RoomMatch™ array module loudspeakers and PowerMatch™ amplifiers, which not only overcame all of those challenges but also proved to be both a cost and time-saver.

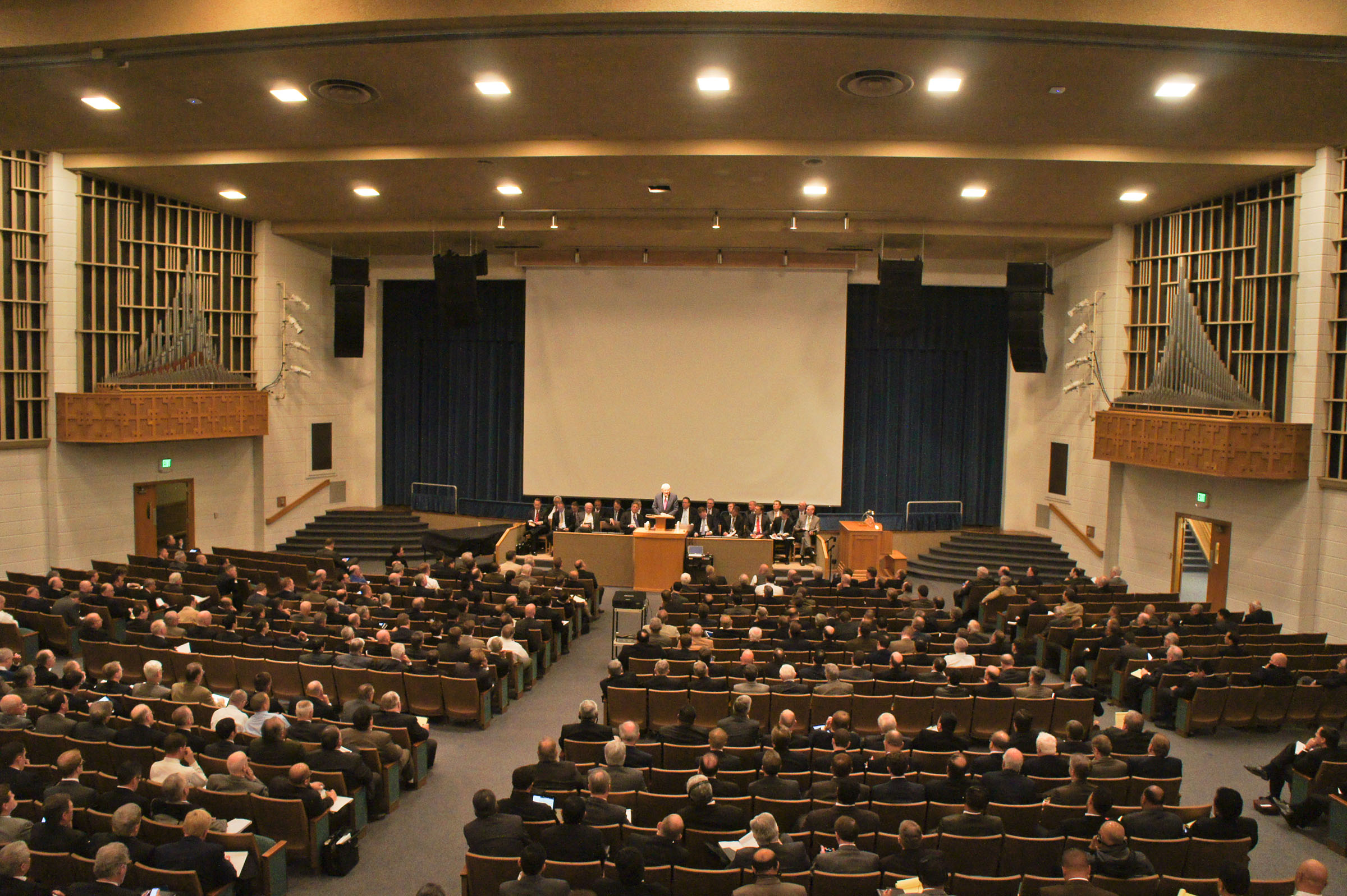

A new Bose RoomMatch array module system was recently installed, consisting of 27 RoomMatch modules plus six RMS215 subwoofers, powered by ten PowerMatch 8500 amplifiers. The RoomMatch progressive directivity arrays are available with a wide range of horizontal and vertical dispersion characteristics. The Oakland Temple installation includes RoomMatch modules offering 90x60-degree coverage, referred to by the model number RM9060, as well as the RM9020, RM9010, RM7040, RM7020, RM7010 and RM5520 models. The system was specified by Ken Dickensheets, CTO/Principal Consultant, Dickensheets Design Associates, Austin, Texas, and installed by Marshall Industries of Salt Lake City, in collaboration with Poll Sound, based in Murray, UT, integrating it with an existing Yamaha mixing console and under-balcony ceiling speakers. There are two RoomMatch hangs at the proscenium and two halfway back in the room, and five more for the balcony. An additional module provides stage foldback. The system operates in two modes: unattended, for conferences; and for theatrical events using the Yamaha console. A Biamp AudiaFLEX processor handles room tuning, routing and control up to the Bose amps, which are loaded with the speaker parameters, while an Ivie Technologies iFlex 1280 supports automatic operation.
Dickensheets, who was familiar with the RoomMatch system, having specified it for previous projects, says he was confident in the performance of the system. “The overriding consideration was speech intelligibility with the added need for excellent musical quality,” he says. “When we looked at other speaker systems we could address some of the issues but not all of them; this one addressed all of the issues. We were able to keep most of the direct energy off the rear and side walls. It enabled us to get very even sound coverage in the room, better than plus or minus 1 dB at 2 kHz with very high intelligibility.”
In addition to the great sound of the RoomMatch speakers and PowerMatch amplifiers, the designers and installers availed themselves of one unique technology in the Bose arrays. The Continuous-Arc Diffraction-Slot (CADS) manifold has eliminated throat distortion, obviating the need for corrective finite impulse response (FIR) filtering. “On most conventional systems, when we get the speakers aimed and the crossovers put in, we’re about 20 percent along in the tuning process,” observes Dickensheets. “What we found with this system is that by the time that we’ve put the crossovers in the amplifiers and turned the system on we’re 90 percent of the way along.”
In the end, the Bose technologies successfully addressed every issue on the agenda, and did so better than any other solution on the market. “Not only was it more time-efficient, but it saved money, too,” says Dickensheets “The estimates for this system came in below comparable systems, so we had a lower cost and higher performance.”
About Bose RoomMatch and PowerMatch:
The Bose RoomMatch Array Module defines a new category of loudspeakers, delivering concert sound quality for a wide variety of fixed installation systems. Through Bose proprietary technologies, the RoomMatch modules offer unprecedented scalability to provide consistent tonal balance for a wide variety of room sizes, shapes, acoustic requirements, or budgets. This unique scalability allows modules to be used singularly in applications with modest SPL and coverage-control requirements, or to form Progressive Directivity Arrays with up to 8 modules for the highest SPL and coverage-control requirements. The precise, constant-directivity coverage from all modules and array configurations helps ensure consistent tonal balance, virtually independent of room shape and acoustics.
The Bose PowerMatch PM8500 is a configurable professional power amplifier delivering concert sound quality for fixed installation sound reinforcement systems. Building on the ruggedness proven by 20 years of experience bilding Class-D power amplifiers for the automotive market, the PM8500 adds numerous new Bose patented technologies to simultaneously provide class-leading power, efficiency, sound quality and reliability.
For more information please visit http://pro.Bose.com .
